Vacuum Packing Machine
 Vacuum
Packing Machine
|
|
Table Top Vacuum
Packing Machine
Vacuum packaging” is a process of removing air
from in side a bag and sealing it to prevent air from going back. In this
process, air takes away oxygen, humidity, micro organisms, bacterias etc,
keeping the inner items unexposed to oxygen humidity bacterias etc. Vacuum
Packaging preserves food's distinct tastes, scent, colour, nutrients and
freshness.Thus elongates shelf life of the product to a considerable extent.
| Model |
PSVPM400 |
PSVPM 500 |
| Chamber Dimensions |
375 x 365 x 80 mm |
440 x 465 x 100 |
| Machine Dimensions |
490 x 415 x 350 mm |
555 x515 x350 mm |
| Vaccum Pump |
180 litre/minute |
330 litre / minute |
| Sealing Bar |
355x4 mm (1,2 filament) |
455/4mm( 1,2 filament) |
| Construction |
Stainless steel |
Stainless steel |
| LID |
Transparent Acrylic |
Transparent Acrylic |
| Packing cycle |
2 - 3 cycle / minute depending on the product |
2 - 3 cycle / minute depending on the product |
| Gas Flushing |
Optional |
Optional |
| Power |
1Ø 220 V .75 KW |
1Ø 220 V KW |
|

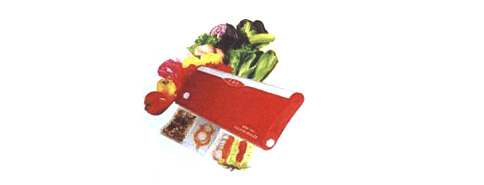

MINI VAC
|
Sealing length 300 milimeter, if the number of
pouches to be vacuumized are less than 1000 numbers per day Mini Vac is
considered because of its economic pricing. It generally finds
applications upto1 Kg pouches.
|

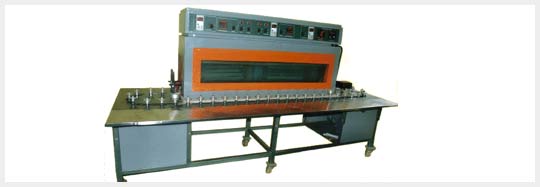

Label
Shrinking Machine |
|
|
Specification
| Model |
PSL SM 100 |
| Power |
50 Hz 3Ø - 440V +N +E |
| Mechanical Dim. L x W x H (mm) |
3000 x 1050 x 1900mm |
| Tunnel Dim. L x W x H (mm) |
255 x 305mm |
| Heater (Kw) |
3x6KW=18KW |
| Conveyor Speed |
90-140 Bottles / min-depending On The Container |
|
|
|
| Sr.No |
Features |
| 1 |
Compact In Size |
| 2 |
Rugged Heavy Duty Machine. |
| 3 |
Sturdy Steel Base. |
| 4 |
Aluminium Bracket For Container
Placement. |
| 5 |
Visibility Of Shrinking Through
Glass Window |
| 6 |
Container Rotation Inside Tunnel |
| 7 |
Variable Blower Speed-Ac Drive |
| 8 |
Accurately Controlled Tunnel
Temperature. |
| 9 |
Offers Neat,Clean And Wrinkless
Shrinking. |
| 10 |
Takes The Shape Of Product |
| 11 |
Enhances Sales Appeal And Prevents
Pilferage |
|
|
|
©
